Sunday, February 26, 2017

February 2017 update. Wing structures ready for cover







July 2016 Update.


It's actually February 2017 as I am writing this blog, but I had to break it into meaningful chapters and this is one important one completed. Basic wing structures are completed, fitted, brace wiring done, bamboo extensions installed, fittings made. 90% done, 90% to go. Just cover and fly ?


Building the wings

I initially expected the wings to be a simple process, after all, I had drawings and materials were straight forward. Sitka spruce, 4130 chrome moly, the wires and turnbuckles, covering materials. Nothing new here. Right?

WRONG.

Turns out that the drawings were woefully inadequate, primarily they did not adequately show the twist of the wings. Seems that 5 degrees washout appears correct, plus another 2 degrees at the tips. That was made evident after studying many photos and sketches. Plans were not revealing. Plus mine would be made in 2 inner and two outer panels, hinged where they joined to provide folding in order to bring their overall size down to a manageable dimension, but creating yet another challenge. My hangar is 45 foot wide ( outside dimension ) and the wingspan is 47 foot.

Building the wing structures actually turned out to be a two year project. I was able to work in my heated workshop- up to the point of installing the bamboo extensions - or I would not be able to get them out of the shop. Boat in the basement syndrome. The setup was complicated, getting the twist and everything correct, with two separate panels. Here goes:


So this is what I had to work with



Translated into black on white, much better




Root Rib profile, thanks Heinz.




Translating onto fixture board

All the main components needed to be fabricated first



Getting the radius for the tip bows figured out



Bending and gluing the tip bow strips in a fixture, after steaming








Making # 13 ribs, where the folding hinges will be installed


Rib 13 in place


my indoor-outdoor saw mill




Wing tip bows completed



10 to 1 taper jig and cut


Joining to leading edge



Planning never to come apart



Gluing several spars at the same time



My poor man's glue curing oven during cold weather



Each spar is made of two laminates, total of 12 spars.




Notching the leading edge for the rib caps


Homemade router jig


getting the angles set up, note the twist



Starting to lay out the spars


Fitting the spars



Corner blocks and gussets



Note the washout



Rib 13, where inner and outer panels meet



One of the 6 hinges, one per spar



Hinges in place



folding trial



One of the bracing fittings


Fitting the fitting


Cross bracing each panel



Using a laser to get it nice and true. ( Overkill )



Miles of Sitka spruce rib cap strips

Cap strips installed



Lots of stiffener blocks installed, each one different



Seemingly hundreds of stiffener gussets, each one needs to be individually fitted



.. and glued into place



That's where a lot of time goes



My poor man's steamer, works like a charm



Just add wood.. and steam away


Then place in fixture, let dry, next day glue together in same fixture.


Temporarily fit bow at inboard end of wing for later assembly



Install scalloped leading edge plywood and wing walk stiffeners



Remove and varnish 2 coats



Lay out and admire



Making all the pieces for the bridge out of laminated ash



All the fittings needed for the bridge and folding mechanism

For one wing, after sandblasting, and powder coating



Some of the fittings for the 49 wires , two of each



Fitting the left inner panel onto the fuselage



Then the right



Then both



Starting the bridge and folding system, left side



Same shot, from the front. Still snow on the runway

Bridge and bracing wires and washout trimming



Note the aluminum angles clamped to the underside of the wing, to allow digital level to be used to get the washout correct




Getting cramped already


Leading edge hinge and bracing wires and fittings, to get the wires right



Bridge junction at station 13 for folding mechanism


Fun building this junction, where the outrigger wheel will mount



Designing all the 49 wires for each wing and their fittings



Yes, 49 different wires, each side


Not done yet, now come the bamboo extensions, each one gets fitted with at least a half dozen wood wedges, glued  and then taped.  I am using cloth tape, excellent stuff.


Very solid

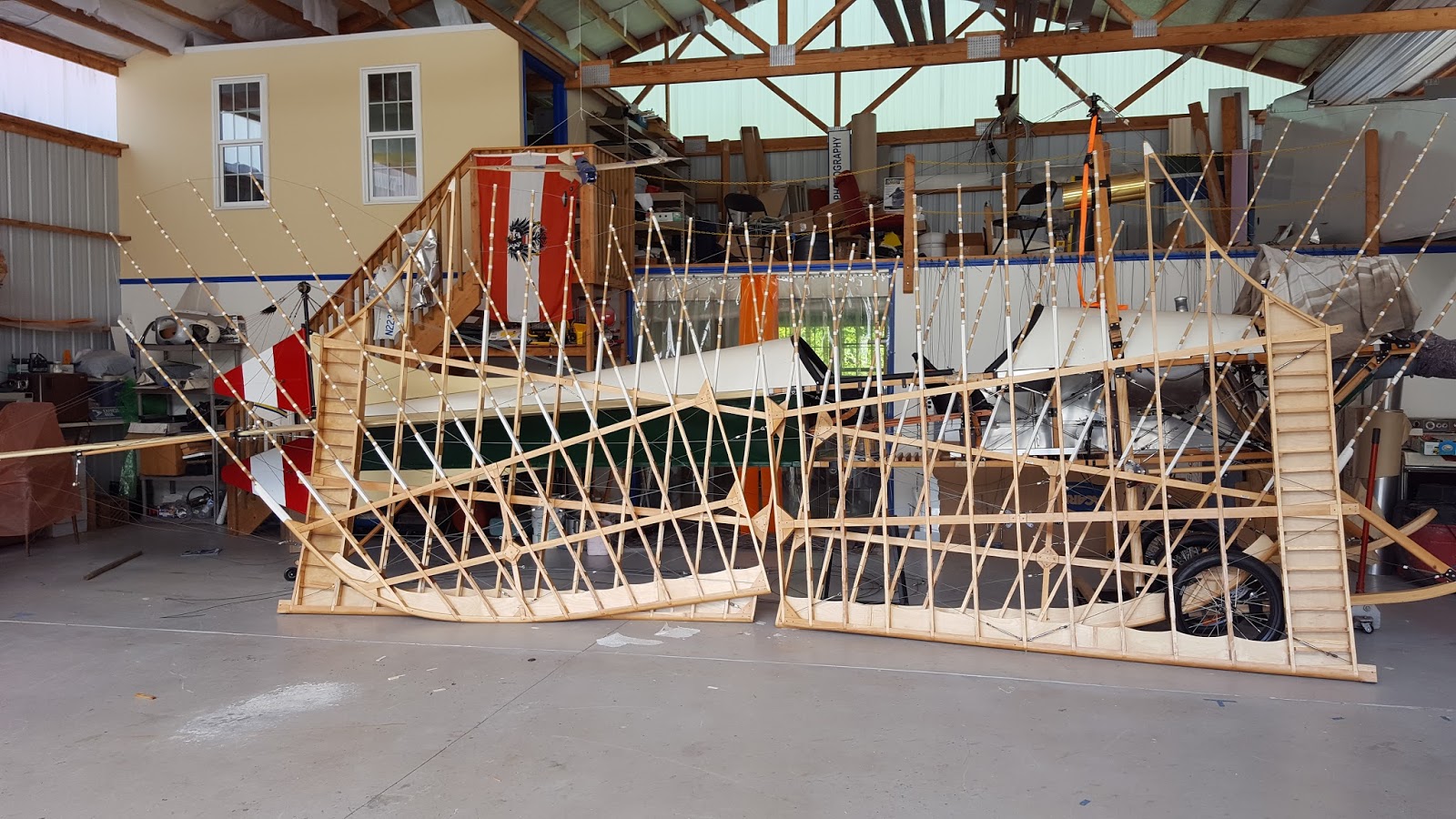

The outer panels almost double in size



Tip wire gets installed and secured with copper wire and soldered



Time to inspect


and admire some more



So this is where I am in July 2016. 90% done, 90% to go.
