Sunday, September 10, 2017






First Taxi August 30 2017

(This time with wings)




Rolling out

Quick engine test run
Getting ready

Wires in place
Looking good
side covers in place
Getting serious
1912 ASRA with Feldpilot Robert Eyb


2017 ASRA with Michel Fithian-Eyb


see the taxi on youtube:







Tuesday, August 22, 2017


August 2017 Post



Ready for taxi.


This is now my eleventh Blog Update. If you wish to see this progress in the actual time line, you need to click on the earliest archives on the right since blogs are posted as newest ones first.

A lot has transpired since my last publishing in January 2017, which actually covered up to July 2016. Since then the wings were covered, painted and final installed, wires adjusted and safetied and warp control installed.

As mentioned in a prior blog, I chose to divert from the original covering material, namely linen, to a more modern material, ceconite. Linen only lasts a couple of years in UV exposure and I don't look forward to do this every couple years. Same with paint, modern paints have come a long way and I have chosen to used a Premium quality latex, exterior. Many independent tests have shown this to be an advantageous method. You are putting it on the outside of your house, right ? How long does it last? Plenty.


Four wing panels ready for covering

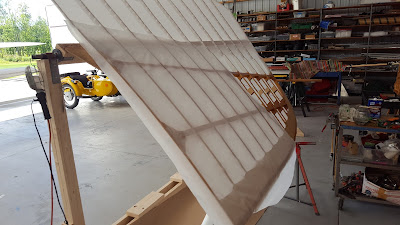

Left outer panel in the rotisserie

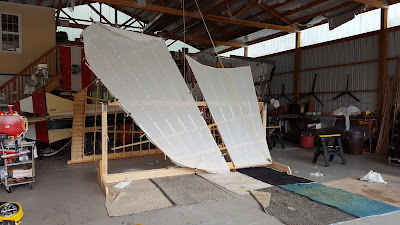

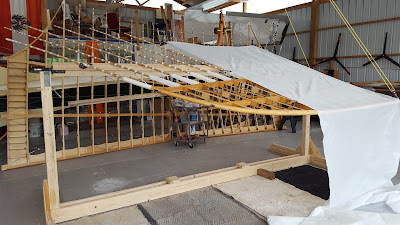

First piece of fabric



Bottom goes on all the way to the back



Takes two plus a center strip





Bottom covered

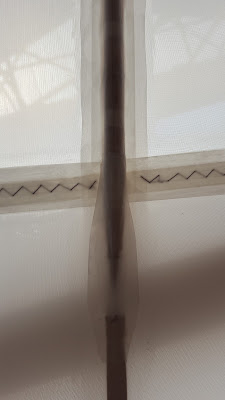

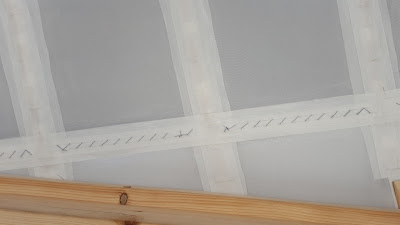

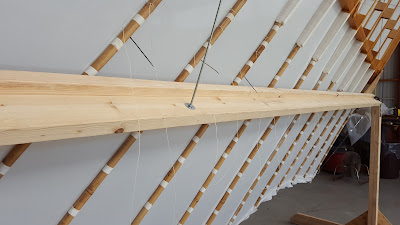

Rib-stitched, note one needle per bamboo, reduces travel time.



Reinforcing tapes over bamboo



Top goes only to the bamboo



Sewing where top and bottom meet



Tapes everywhere

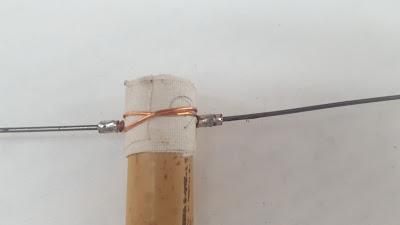

Trailing edge wire. Not sure how they did it, but seemed like a good idea






Inner wing panel next



 Before painting, rattan strips were glued and nailed onto every rib cap on top and every second one on the bottom.



After washing, two coats rubbed-in paint, then one rolled coat

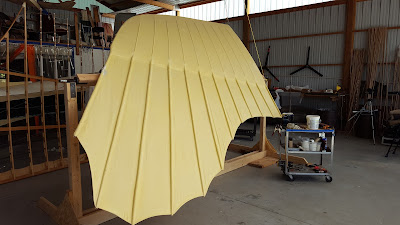

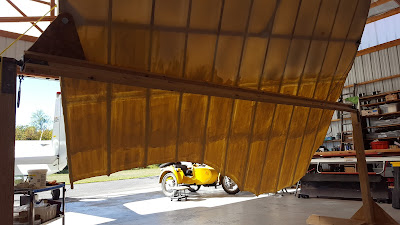

After first coat of rubbed-in paint


After second coat



Completed panel



Stored, ready for next. 14 foot tall, 12 wide.



xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Final Assembly



Getting panels ready. All drilled holes cleaned and all metal fittings installed

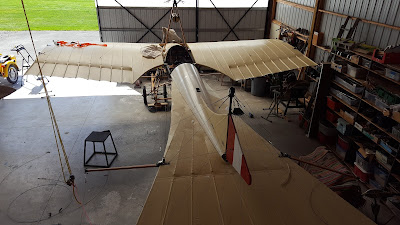

Both inners are on

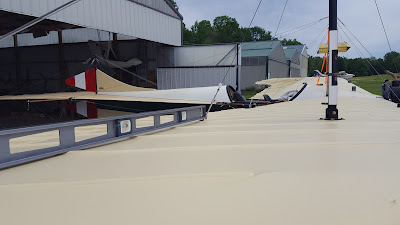

Leveling in order to tweak turnbuckles

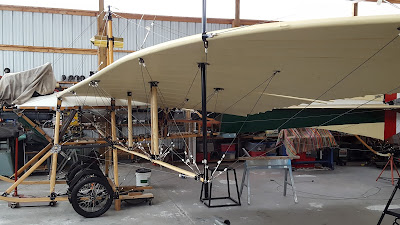

Let outer panel in place



Ready for panel



Installing all the wires before lifting in place




The only place I really needed some help




Local BOCES students assisting.




Now to adjust all turnbuckles





Ready to test the folding mechanism


No problem

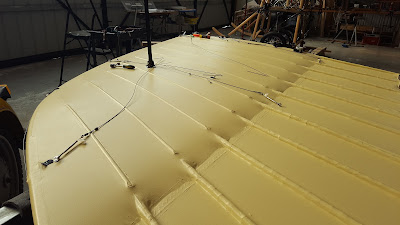

Installing the warp controls



Splitter for warp wires



Note several levels for trimming



Warp wires competed

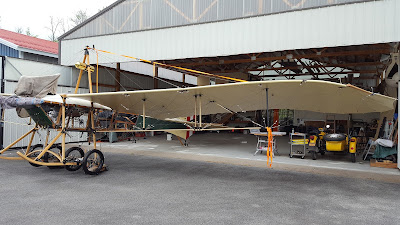

Looking good



Looking even better



Moving with custom tail wheel dolly

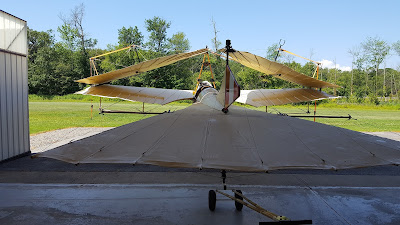

Actually fits sideways in my 45 foot wide hangar



Even enough room for my little Cessna 150



Final touches


The Original


Ready to roll out



Rolling out




Ready for taxi.
